Why it matters

Trusted Positioning When It Counts

In areas prone to GNSS spoofing, jamming, or denial, RockFLEET Assured continues to deliver verified position data via the Iridium constellation — giving bridge officers, fleet managers, and coastal authorities a reliable, tamper-evident position source at all times.

Operates independently of GNSS when signal is compromised

Certified A-PNT source meeting international maritime requirements

OTA configuration updates — no shore visits required

Optional backup battery for power-loss resilience

Get a Quote

Key Features

Everything you need for trusted maritime positioning backup and reporting

Specifications

Technical details for engineering and procurement teams

Physical & Environmental

Form Factor Low profile antenna (deck or pole mounted)

Cable Up to 100 m marine-grade cable

Dimensions 201 mm diameter, 125 mm height

Weight 1,460 g (antenna + mounting bracket)

Environmental IP67

Operating Temp -40°C to +70°C

Communications

IMT Data transfer packet size flexible from 25 to 100,000 bytes

A-PNT Integrated Iridium PNT module

Supported Messages Position reports, alerts (geofence / power / tamper as configured), and additional operational payloads (size / rate profile configurable)

User Interface & Device Management

Mobile App (Bluetooth LE) Configuration, commissioning, and status reporting — including position and message / connection state

Local Alerts Status and fault reporting via the app and remote notifications to shore systems (configuration dependent)

ECDIS Configurable to output NMEA 0183 or NMEA 2000 messaging. Separate bridge display available.

Electrical Power

DC Input 10 V to 36 V DC

AC Input (optional) 220 V AC via external power supply kit / integration dependent

Backup Battery (optional) Internal battery option for continued operation during power interruption (autonomy depends on reporting profile)

* All specifications subject to change.


Assured Positioning (A-PNT) via Iridium PNT
Certified position source for trusted vessel position reporting in areas where GNSS is unreliable, spoofed, or jammed.

Chart View (Bridge Situational Awareness)
Nautical chart display showing assured position alongside GNSS position/track with clear status indicators.

Integrity Alerts
Configurable alerts and event logs when position integrity is at risk, shown locally and optionally forwarded to shore.

Two-Way Messaging via IMT
For position and configurable data payloads including telemetry, status, and events.

Configurable Reporting
Scheduled, event-driven, and exception reporting with intervals from 1 min to 1 hour. Reporting profiles and all configuration can be updated OTA.

Geofencing & Alerting
Entry / exit alerts with rule-based monitoring for security and operational workflows.

Power Cut Resilience (Optional)
Backup battery for continued tracking and reporting during vessel power interruption.

Single Installation (All-in-One)
Single above-deck terminal — no below-deck electronics required unless bridge view is used. Marine cable up to 100 m for flexible routing.

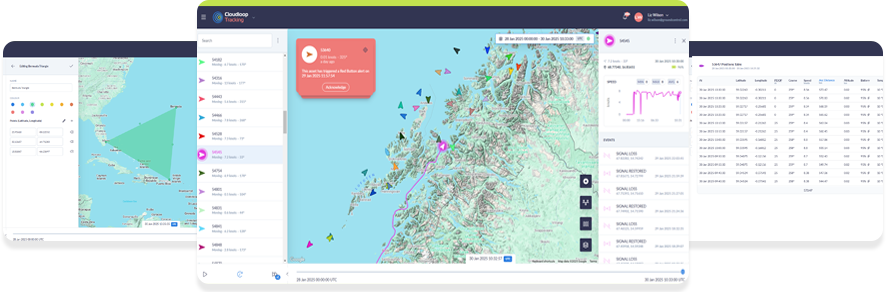

Track your fleet with Cloudloop or updates sent directly to your operations center

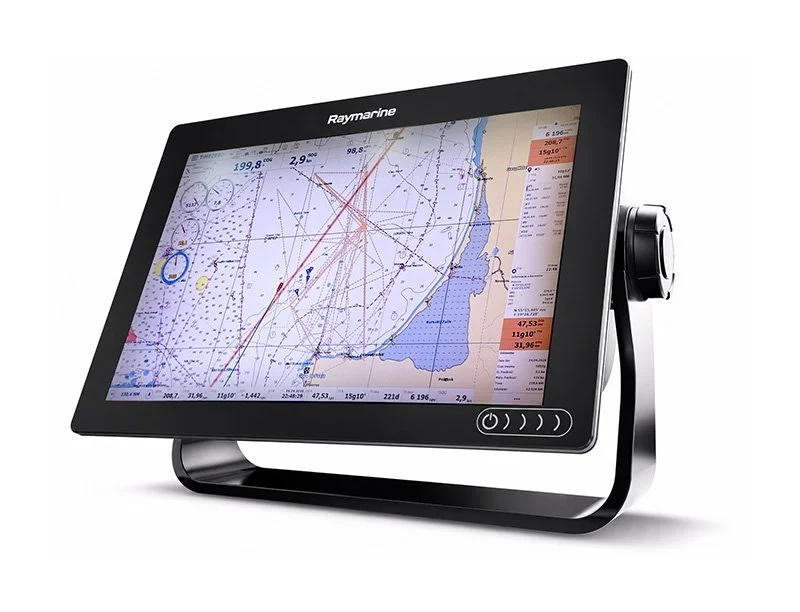

Optional on-bridge charting displays also available

Bridge View

Bridge View (Rugged Version)

Ready to deploy
RockFLEET Assured?

Contact the IoT Orbital team for pricing, volume discounts, and availability.
